x5: Hydraulic Shop Press

x5: Hydraulic Shop Press

Back >

Great for garage, workshop, farm, manufacturing plant and other areas where you need to press metal
Available capacity 12, 20, 30 ton
Available capacity 20, 30 & 50 ton shop press with gauge

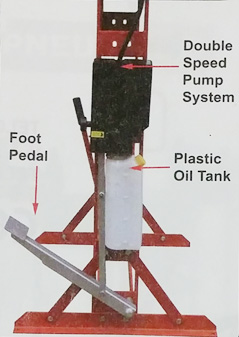

Product Diagram

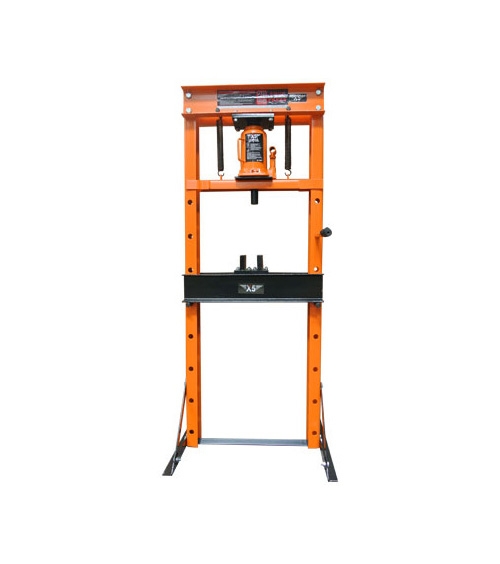

TRSP12000

TRSP12000

TRSP12000

Model	TRSP12000
Lifting Weight (ton)	12
Stroke (mm)	175
Max Working Distance (mm)	0-610
Net Weight (kg)	43
Packing size (mm)	1260 X 220 X 165

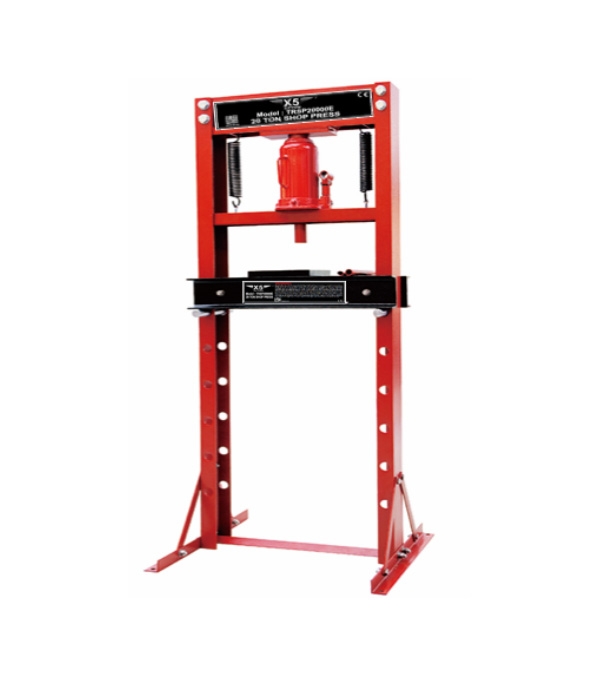

TRSP20000E

TRSP20000E

TRSP20000E

Model	TRSP20000E
Capacity (ton)	20
Stroke (mm)	150
Work Range (mm)	0 ~ 710
N.W (kg)	68.3
G.W (kg)	71.8
Package Size (mm)	1530 X 215 X 220

TRSP20000FP

TRSP20000FP

TRSP20000FP

Model	TRSP20000FP
Lifting Weight (ton)	20
Stroke (mm)	190
Max Working Distance (mm)	0-1000
Net Weight (kg)	120.5
Gross Weight (kg)	180
Packing size (mm)	1605 X 910 X 370

TRSP30000

TRSP30000

TRSP30000

Model	TRSP30000
Lifting Weight (ton)	30
Stroke (mm)	160
Max Working Distance (mm)	0-998
Net Weight (kg)	129
Packing size (mm)	1695 X 340 X 210

Close

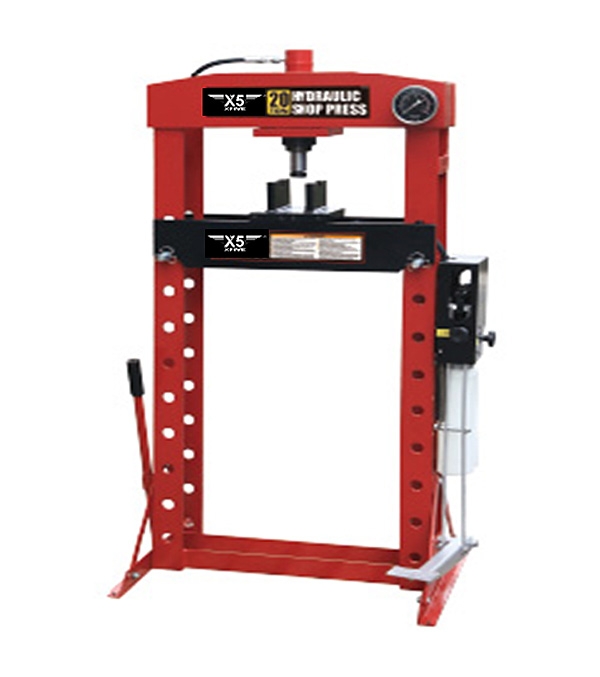

Shop press with gauge

Product Diagram

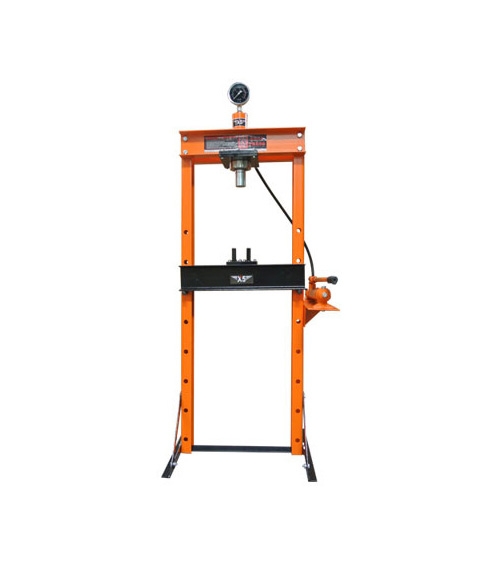

TRSP20000G

TRSP20000G

TRSP20000G

Model	TRSP20000G
Lifting Weight (ton)	20
Stroke (mm)	185
Max Working Distance (mm)	0-910
Net Weight (kg)	#1 81.5 #2 20
Packing size (mm)	#1 1550 X 185 X 150 #2 640 X 320 X 130

TRSP30000G

TRSP30000G

TRSP30000G

Model	TRSP30000G
Lifting Weight (ton)	30
Stroke (mm)	160
Max Working Distance (mm)	0-840
Net Weight (kg)	150
Packing size (mm)	1620 X 380 X 300

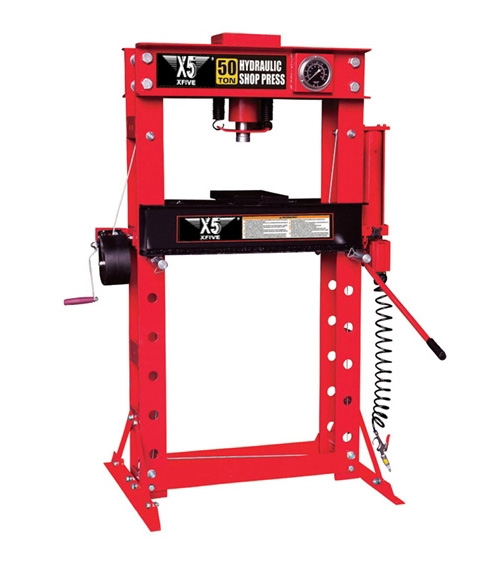

TRSP50000G

TRSP50000G

TRSP50000G

Model	TRSP50000G
Lifting Weight (ton)	50
Stroke (mm)	175
Max Working Distance (mm)	0-890
Net Weight (kg)	243
Packing size (mm)	930 X 390 X 1860

Close
