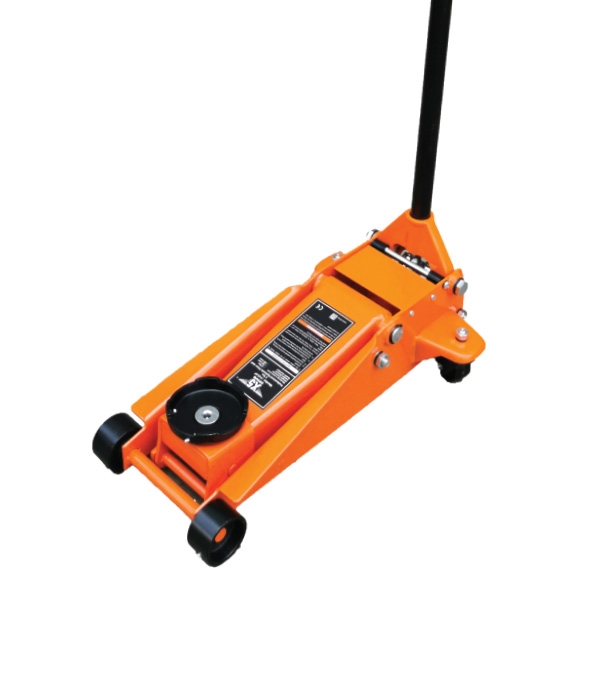

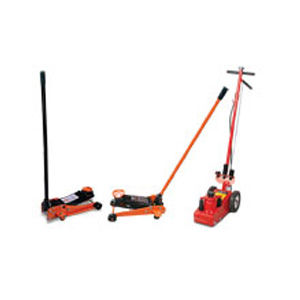

x5: Floor Jack

  • Easy maneuvering underneath vehicles or machinery
  • Ideally suited for all automotive, agricultural, heavy truck repair facilities and heavy construction equipment.
  • Available capacity 3, 3.5 ton(low profile type available)
  • Long floor Jack – Available capacity 5, 10 ton
  • Air Hydraulic Floor Jack – Available capacity 22, 35 ton


Product Diagram

Floor Jack (Double Pump)

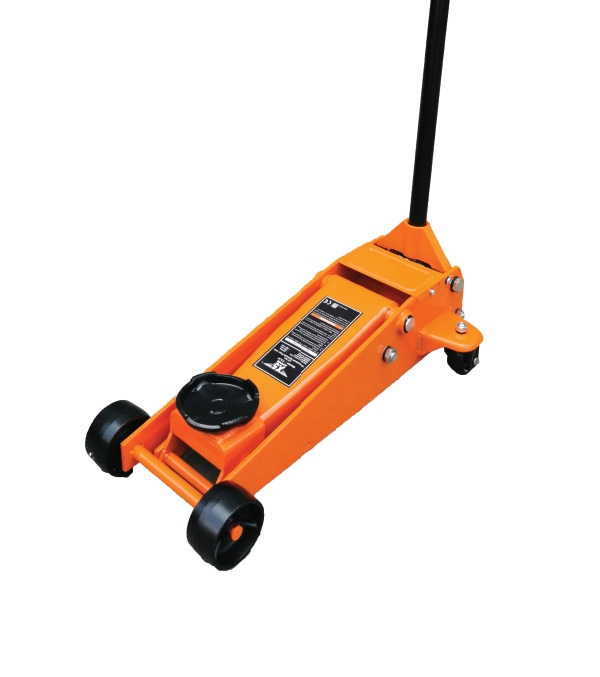

  • 3.0 Ton Floor Jack - FJ3.0T 3.0 Ton Floor Jack - FJ3.0T
    • 3.0 Ton Floor Jack - FJ3.0T

    3.0 Ton Floor Jack - FJ3.0T

    Model FJ3.0T
    Capacity (ton) 3 Ton
    Min Height(mm) 130
    Max Height (mm) 465
    N.W/G.W (kg) 29/31
    Product size (mm) 630 X 320 X 165
    Package size (mm) 675 X 380 X 213
    Feature Double Piston
  • 3.5 Ton Floor Jack - FJ3.5T 3.5 Ton Floor Jack - FJ3.5T
    • 3.5 Ton Floor Jack - FJ3.5T

    3.5 Ton Floor Jack - FJ3.5T

    Model FJ3.5T
    Capacity (ton) 3.5 Ton
    Min Height(mm) 140
    Max Height (mm) 520
    N.W/G.W (kg) 38/40
    Product size (mm) 716 X 346 X 165
    Package size (mm) 780 X 395 X 200
    Feature Double Piston

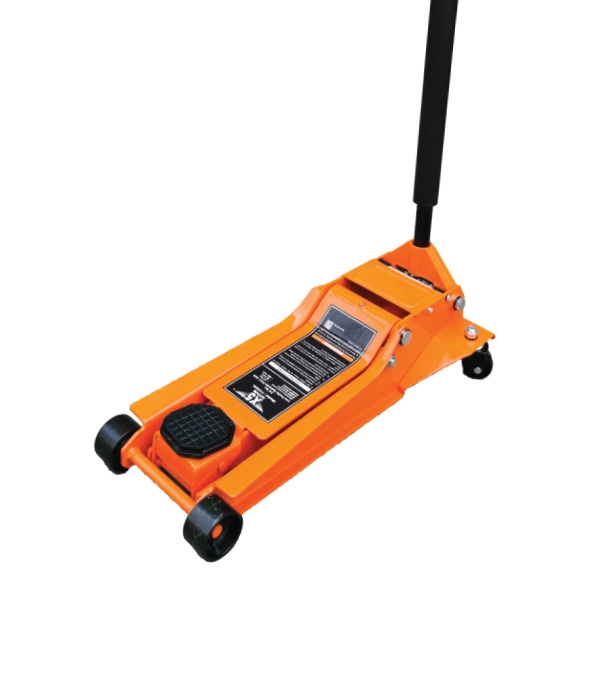

Low Profile Floor Jack (Double Piston)

  • Low Profile Floor Jack (Double Piston) Low Profile Floor Jack (Double Piston)
    • Low Profile Floor Jack (Double Piston)

    Low Profile Floor Jack (Double Piston)

    Model FJ3500L
    Capacity (ton) 3.5
    Min Height(mm) 98
    Max Height (mm) 535
    N.W/G.W (kg) 43/45
    Product size (mm) 760 X 345 X 170
    Package size (mm) 815 X 400 X 200
    Feature Double Piston

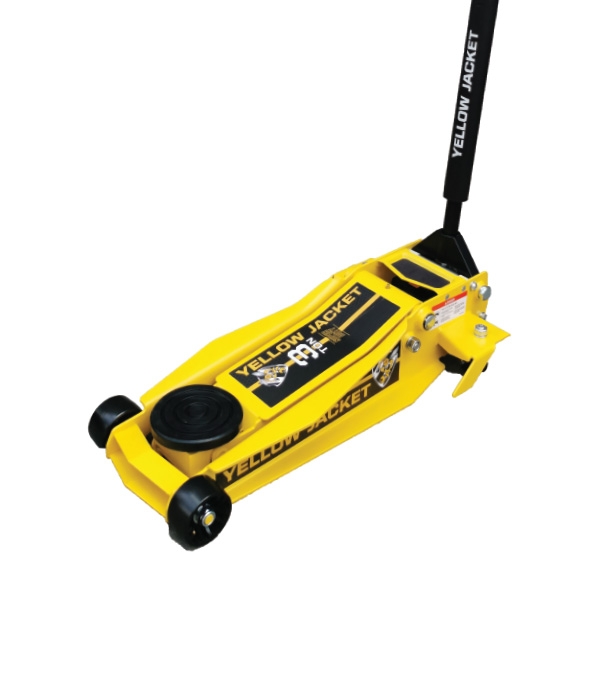

3.0 Ton Turbo Super Duty Jack Yellow Jacket (Double Piston)

  • 3.0 Ton Turbo Super Duty Jack Yellow Jacket (Double Piston) 3.0 Ton Turbo Super Duty Jack Yellow Jacket (Double Piston)
    • 3.0 Ton Turbo Super Duty Jack Yellow Jacket (Double Piston)

    3.0 Ton Turbo Super Duty Jack Yellow Jacket (Double Piston)

    Model YELLOW JACKET 3 TON
    Capacity (ton) 3.0
    Min Height(mm) 100
    Max Height (mm) 585
    N.W/G.W (kg) 52/56
    Product size (mm) 846 X 398 X 168
    Package size (mm) 900 X 455 X 185
    Feature Double Piston

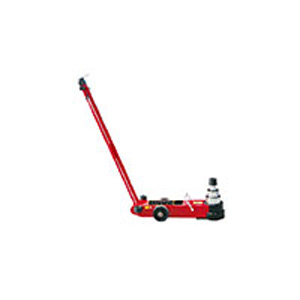

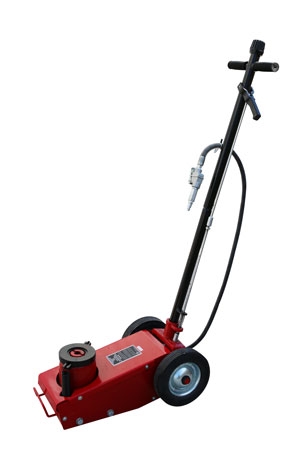

AIR Hydraulic Floor Jack

  • Low Profile Floor Jack (Double Piston) AIR Hydraulic Floor Jack
    • AIR Hydraulic Floor Jack

    AIR Hydraulic Floor Jack

    Model TRAFJ22000 TRHAFJ35000
    Capacity (ton) 22 35
    Min Height(mm) 215 245
    Max Height (mm) 430 490
    Ram Lift (mm) 110 130
    Screw Extend (mm) 105 115
    Air Pressure (Mpa) 0.75~0.85 0.75~0.85
    N.W/G.W (kg) 45/47 46/50
    Package size (mm) 660 X 380 X 240 660 X 380 X 240

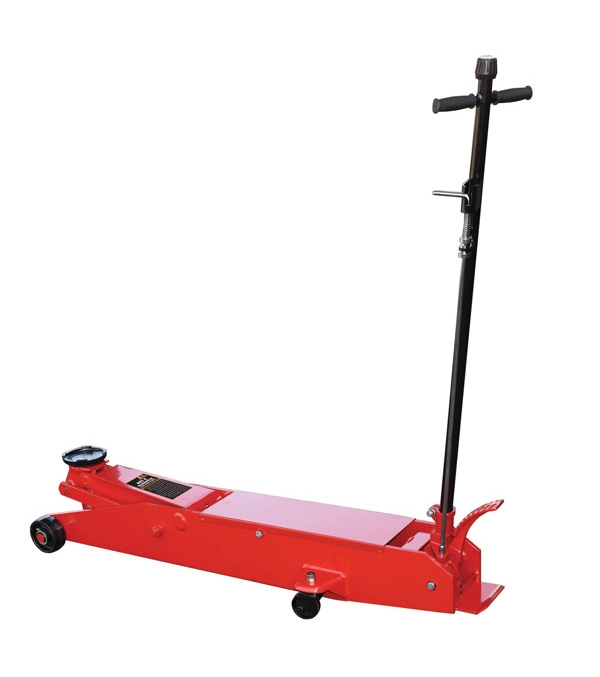

Long Floor Jack

  • Long Floor Jack Long Floor Jack
    • Long Floor Jack

    Long Floor Jack

    Model TRLFJ5000 TRHLFJ10000
    Capacity (ton) 5 10
    Min Height(mm) 150 160
    Max Height (mm) 560 560
    N.W/G.W(kg) 87/101 129/145
    Product Size (mm) 1510X380X210 1640X480X260
    Package Size (mm) 1570X420X290 1670X520X330

Product Range

Product Range

*Pictures for illustration purposes only, may be subject to design and/or colour difference.*
